Velo Orange Piolet Frameset
€999.95
Incl. VAT excl. shipping
- Still 1 in stock, Delivery time 1-3 days*
- Dispatch on Monday if ordered by Monday 11 a.m.
Pay after 30 days
Pay in 30 days
60 days right of return
Free returns service
Free DHL shipping from 200 €*The Piolet Frameset for Bikepacking
The Velo Orange Piolet frameset is designed for bikepacking, off-road touring and gravel. The double butted chromoly steel frame is strong, simple and very capable. The fork is triple butted to reduce weight and provide additional strength. The seatstays are combined in a cool monostay wishbone and complement the segmented fork. The frame can easily be set up for bikepacking or as a traditional rack touring bike!
Features:
- Double butted chromoly steel frame 4130 CrMo
- Triple butted steel fork, threadless
- Lowrider bushings on the fork
- Drinks bottle holders in the frame triangle, on the down tube and on the fork legs
- Mounts for a rear wheel luggage rack in 2 heights
- Fender mounts
- Replaceable stainless steel derailleur hanger
- Color: Metallic Moss
Size recommendation:
Manufacturer information on rider size:
- S = 158 - 170 cm
- M = 168 - 180 cm
- L = 178 - 188 cm
- XL = 185 - 193 cm
Our experience:
- Size L is suitable for a height of 181 cm and 86 cm inseam length
Frame:
- Rear wheel installation width: 12 x 142 mm thru axle
- Seat post (Ø): 27.2 mm
- Seat clamp (Ø): 30.0 mm
- Headset (top): EC34/28.6
- Headset (bottom): EC34/30
- Bottom bracket standard: BSA (shell width 73 mm)
- Stem clamp size: 28.6 mm (1 1/8")
- Front derailleur: 28.6mm, bottom pull/bottom swing
Fork:
- Installation width: 12 x 100 mm thru axle
- Steerer tube: 1 1/8"
Tire Size (max.):
- 26 x 2.4" (S)
- 27.5 x 2.8" (M, L, XL)
- 29 x 2.4" (M, L, XL)
Brake Disc Size:
- Front brake: 160 - 180 mm diameter (IS mount)
- Rear brake: 160 - 180 mm diameter (IS mount)
Scope of delivery:
- 1 x Velo Orange Piolet Frame
- 1 x Velo Orange Piolet Fork
Notes:

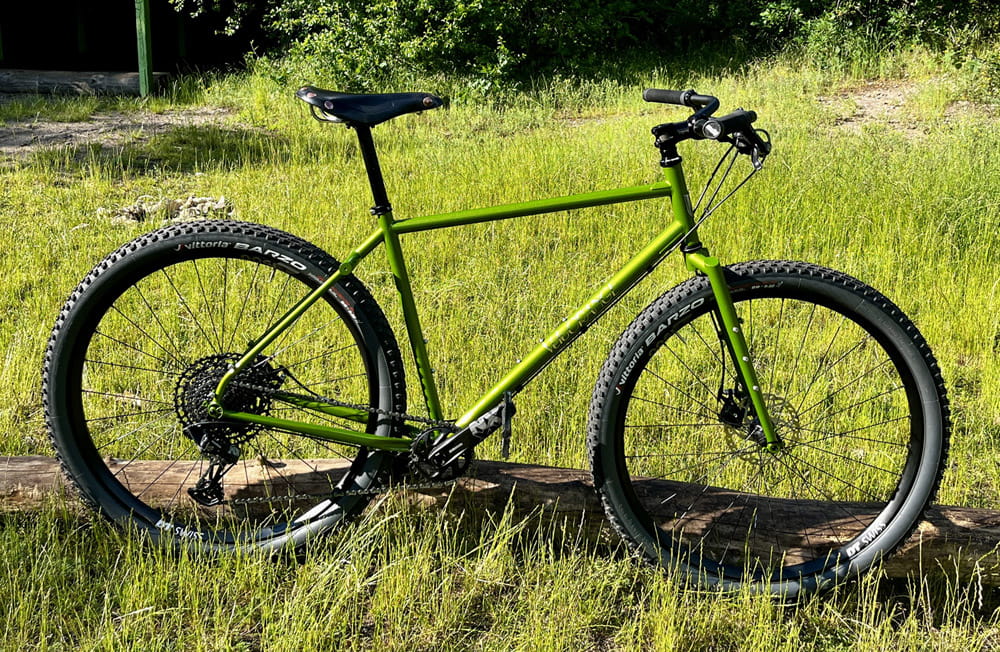

- Pictures of the complete bike are for illustration purposes only
- Seat clamp, headset and thru axles are not included
